  • Straight side unitized frame.
  • 2-point eccentric, counter rotating gear design
  • Battleship construction with aircraft quality

Capacities:
250 to 450 ton

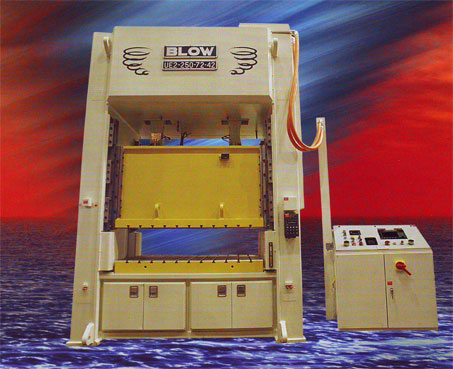

SC2 Straight Side Press

  • One Piece fabricated rigid steel frame - thermally stress relieved.
  • Counter rotating main eccentric gears with live F-B main pins.
  • Ortilinghaus pneumatic clutch/brake with large accumulator.
  • Quill mounted flywheel with auto lube.
  • Self contained hydraulic overload system using press lube oil.
  • T-slotted bolster and slide.
  • Machined feed pad at RH end of press.
  • Trabon circulating oil lubrication to all bearing surfaces.
  • Allen Bradley variable frequency AC drive.
  • Free standing operator console with overhead wireway to press.
  • Omnilink 5000 press and automation control with 8 programmable cams.

Model No.
UE2-250
UE2-350
UE2-450
Capacity (US tons)
250
350
450
Rating Point (in.)
0.250
0.250
0.250
Gear Reduction
Single
Single
Single
Bed & Slide Area. L-R x F-B (in.)
72 x 42
84 x 48
102 x 54
Bolster Thickness (in.)
6
7
8
Upright Opening, F-B (in.)
25
31
37
Stroke (in.)
8
10
10
Shutheight Over Bolster (in.)
22
24
28
Slide Adjustment (in.)
6
8
8
Speed SPM
40-80
30-70
20-60
Main Drive Motor (HP)
40
50
60
Slide Adjust Motor (Reuland) (HP)
3
5
7.5
Bed & Slide Deflection (in./ft.)
0.001
0.001
0.001
Hydraulic Overload Stroke (in.)
1
1
1
Upper Die Weight (Lbs.)
5,500
8,000
12,000
Floor to Bolster (in.)
38
44
48
Overall Height (in.)
180
210
236
Floor Space, L-R x F-B (in.)
116 x 58
136 x 68
162 x 80
Weight (approx) (Lbs.)
55,000
88,000
132,000
