Products | SC2 Straight Side Press
  • Heavy duty straight side tie rod 2-point crackshaft presses

Capacities:
100 to 2000 ton

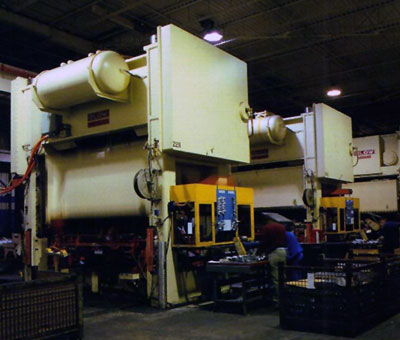

SC2 Straight Side Press

Standard Features

  • Four piece pre-stressed tie rod construction
  • Bed and slide deflection - 0.0018" per foot
  • Forged steel crankshaft - 1 piece
  • Twin end drive rated 1/2" above stroke bottom
  • Single end drive rated 1/4" above stroke bottom
  • Eccentric shaft up to 8 " stroke available on some models at no extra cost
  • Recirculating oil lubrication with flow monitor
  • Hydraulic tie rod nuts with pump
  • Main gearing - oil immersed
  • 8 point fully adjustable gibbing
  • J.I.C. T-slotting slide and bolster
  • Solid state clutch/brake control and PLS
  • Press or floor mounted electrics
  • Operator stand floor mounted
  • Variable speed drives - brushless DC or adjustable frequency AC
  • 3 year warranty

Options

  • Hydraulic overload protection with 1.5 msec. response time
  • Bed and slide deflection 0.0010" per foot
  • 1" above stroke bottom rating
  • Oversize flywheel and drive for high energy applications
  • Pneumatic die cushions - internal or external guiding
  • Hydraulic clutch/brake combination
  • Automation control and die protection
  • Rolling bolsters - straight track or bi-directional





Standard Models

Model No.
SC2- 150
SC2- 200
SC2- 250
SC2- 300
SC2- 400
SC2- 500
SC2- 600
SC2- 800
SC2- 1000
Capacity (tons)
150
200
250
300
400
500
600
800
1000
Dia. of crankshaft at main and eccentric (in.) 6½ - 9½ 7½ - 10¼ 8 - 11 8½ - 11½ 9¾ - 12¾ 10½ - 13¾ 11¼ - 15 12½ - 16½ 13½ - 18
Stroke (standard) (in.)
Stroke (max) (in.)
6
12
8
14
8
16
10
16
10
18
12
20
12
22
14
22
14
22
Shutheight (standard) SDAU over bolster (in.)
18
20
22
24
28
30
32
36
40
Bolster Thickness (in.)
4½
5
5½
6
7
7½
8
9
10
Slide Adjustment-motorized (in.)
6
8
8
10
10
10
10
12
12
Speed
- Non-Geared (SPM)
- Single-Geared (SPM)
- Double-Geared (SPM)

80
40
25

70
35
20

-
35
20

-
35
18

-
30
16

-
30
16

-
30
14

-
25
14

-
25
14
Main Drive Motor (HP)
20
25
30
40
50
60
75
100
125
Bed, Bolster, and Slide
L-R X F-B (in.)
48x30
60x36
60x40
72x40
60x40
72x40
60x40
72x40
60x48
-
72x48
84x48
84x48
96x48
96x48
96x60
108x60
108x72
72x36
72x48
72x48
72x48
72x48
96x48
96x60
108x48
120x60
72x40
84x40
84x40
84x40
84x48
96x54
108x48
108x60
120x72
84x36
84x48
84x48
84x48
96x48
108x48
108x60
120x48
132x60
84x40
96x40
96x40
96x40
96x54
108x54
120x48
120x60
132x72
96x36
96x48
96x48
96x48
108x48
108x60
120x60
132x48
144x60
96x40
108x40
108x40
108x40
108x54
120x48
132x48
132x60
144x72
108x40
108x48
108x48
108x48
108x60
120x60
132x60
144x54
156x60
120x40
120x40
120x40
120x48
120x48
132x48
144x54
144x60
156x72
-
120x48
120x48
120x54
120x60
132x60
144x60
156x54
168x60
-
132x48
132x48
132x48
132x48
144x54
-
156x60
168x72
-
-
-
132x54
132x60
144x60
-
-
-
-
-
-
-
144x54
-
-
-
-
-
-
-
-
144x60
-
-
-
-
