Products | Eccentric Geared Type Press
  • Straight Side Eccentric Geared

Capacities:
200-4000 tons

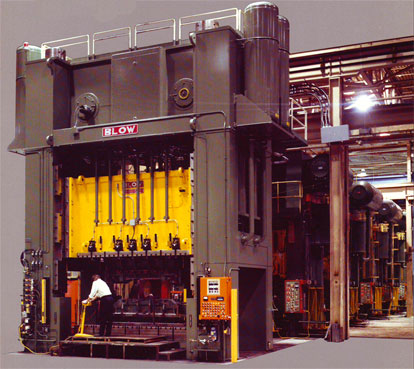

SC2 Straight Side Press

Standard Features

  • Four piece pre-stressed tie rod construction
  • Bed and slide deflection - 0.0018" per foot
  • Front to back bed sizes 48" - 108"
  • Left to right bed sizes 96" - 300".
  • Twin end drive rated 1/2" above stroke bottom
  • Recirculating lubrication with broken line detection and bearing heat sensors
  • Recirculating oil lubrication with flow monitor
  • Hydraulic tie rod nuts with pump
  • High thermal capacity pneumatic and hydraulic clutch/brakes
  • Programmable controls
  • 8 point fully adjustable gibbing
  • J.I.C. T-slotting slide and bolster
  • Solid state clutch/brake control and PLS
  • Press or floor mounted electrics
  • Operator stand floor mounted
  • Variable speed drives - brushless DC or adjustable frequency AC
  • Main gearing and flywheel bearings continuously lubricated

Options

  • Hydraulic overload protection with 1.5 msec. response time
  • Bed and slide deflection 0.0010" per foot
  • 1" above stroke bottom rating
  • Oversize flywheel and drive for high energy applications
  • Hydraulic clutch/brake combination
  • Automation control and die protection
  • Pneumatic and Hydro-pneumatic die cushions
  • Hydraulic overload under slide connections on select models
  • Straight or bi-directional rolling bolsters
  • Partial or complete quick die change systems
